Thumb Roller Lock Screw Digital Caliper Technique Uk

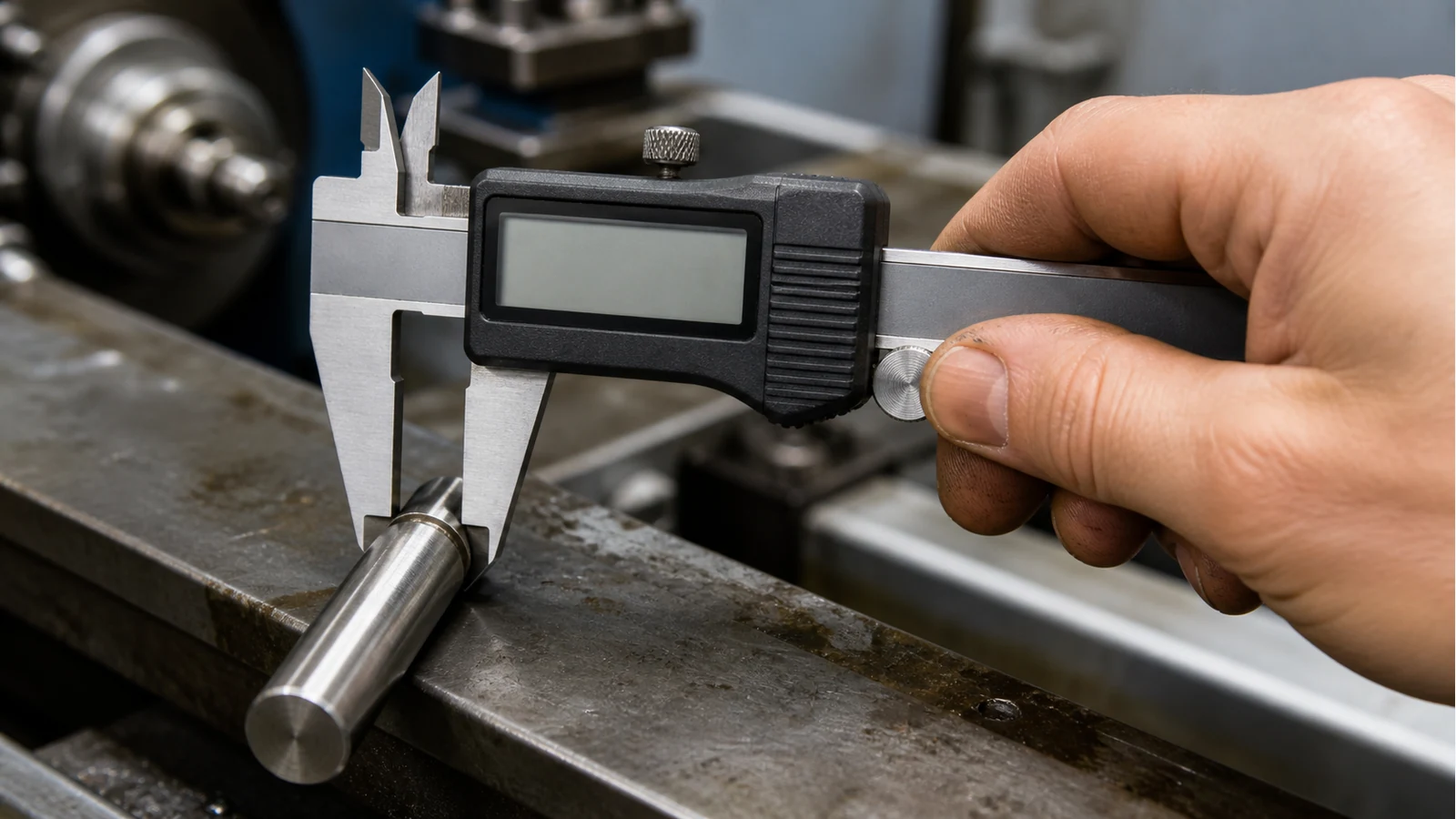

Use the thumb roller to bring the jaws in gently and squarely, then use the lock screw only after the jaws are properly seated if you need to hold or transfer the reading. Locking early, squeezing hard or measuring over burrs is a common reason a digital caliper gives three different readings on the same part.

The repeatable sequence

1. Wipe the jaws and the part.
2. Close the jaws and zero the caliper.
3. Approach the feature squarely, not from an angle.
4. Use the thumb roller for the final movement.
5. Apply light, consistent pressure.
6. On round parts, rock very slightly to find the true diameter.
7. Lock only if you need to carry the reading away from the part.
8. Re-check the reading free if the dimension matters.

What the controls are for

The roller is a fine approach control. It helps avoid the sudden shove that bends thin material or flexes the jaws. The lock screw is a holding control. UK trade listings commonly call out these handling features, including the Rolson 150 mm electronic digital caliper page and the RS PRO 150 mm digital caliper listing.

Where bad readings come from

• Death-grip pressure on plastic, copper or thin sheet.
• Jaw tips used on a large diameter instead of deeper jaw contact.
• Burrs, swarf, paint or oil trapped on the measuring faces.
• Inside jaws tilted in a bore.
• Depth rod angled instead of seated square.
• Lock screw tightened before the jaws are settled.

The micrometer boundary

Technique matters, but it has limits. Guidance such as the Cutwel caliper and micrometer comparison is useful because it separates everyday caliper checks from micrometer work. If the dimension is a final close-tolerance shaft, bearing fit or ground diameter, the better answer is often a micrometer or gauge, not more force on the lock screw.

For oily UK benches

Oil changes the feel of a tool. Wipe the jaws and the part first, then measure. If the thumb roller feels gritty, do not force it; clean the beam and slider. A sealed stainless caliper helps in messy garage use, but basic handling still decides whether the reading repeats.
